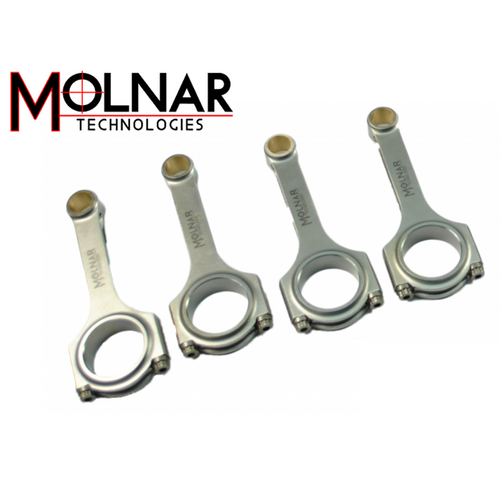

Our go-to H beam rods for Duratec builds. These are made from 4340 billet material, heat treated to increase tensile strength and are shot peened to increase fatigue life. All rods have a wear resistant bronze bushing for long wrist pin life and feature ARP fasteners. All Molnar Technologies connecting rods are finished here in the US at their factory. Tollerances are held to +/- .0001" which is the tightest tolerances you will find in the racing industry. These are a premium quality rod with features that aren't found anywhere else, including custom ARP 2000 bolts designed specifically by Molnar.
- Advertised Horsepower Rating: 800HP
- Material: Forged 4340 aircraft chrome moly quality steel
- Dimensions: Center to center length: 133mm; Big end diameter: 48mm; Small end diameter: 20mm; Big end width: 21.84mm; Small end width: 21.84mm
- Package Contents: 4 Pieces of H-Beam Connecting Rods; 8 Pieces of ARP 2000 5/16" Bolts
- Performance Con Rods
- Advertised RPM Rating: 7000-9000 rpm
- Fastener Tensile Strength (psi):200,000 - 220,000 psi
- Balanced to within +/- 1 gram per end
- The big end bores are honed to a +/-.01mm tolerance
- Heat-treating & Shot-peened for remained consistent and strong
ARP Torque Specs
- ARP2000 3/8" rod bolts — stretch method (preferred): 0.0055–0.0060 in. of bolt stretch, measured with a stretch gauge
- Torque method: 55 ft-lbs with ARP Ultra-Torque
- ARP notes the rod manufacturer determines the exact values — a stretch gauge is the most accurate method and is preferred over torque alone.
All torque values assume ARP Ultra-Torque fastener assembly lubricant (included in the kit). Do not substitute motor oil — ARP notes it produces higher friction and inconsistent clamp load.
FAQ
Torque or stretch — which should I use?
Stretch, if you have a gauge. It directly measures clamp load, while torque readings vary with friction. ARP's spec for these 3/8" ARP2000 bolts is 0.0055–0.0060 in. of stretch (or 55 ft-lbs with ARP Ultra-Torque).
Do I have to use ARP Ultra-Torque?
Yes. Every torque value above was developed by ARP using ARP Ultra-Torque lubricant, which is included in the kit. Using motor oil or moly paste instead will change the friction and give you a different (and inconsistent) clamp load at the same torque reading.
